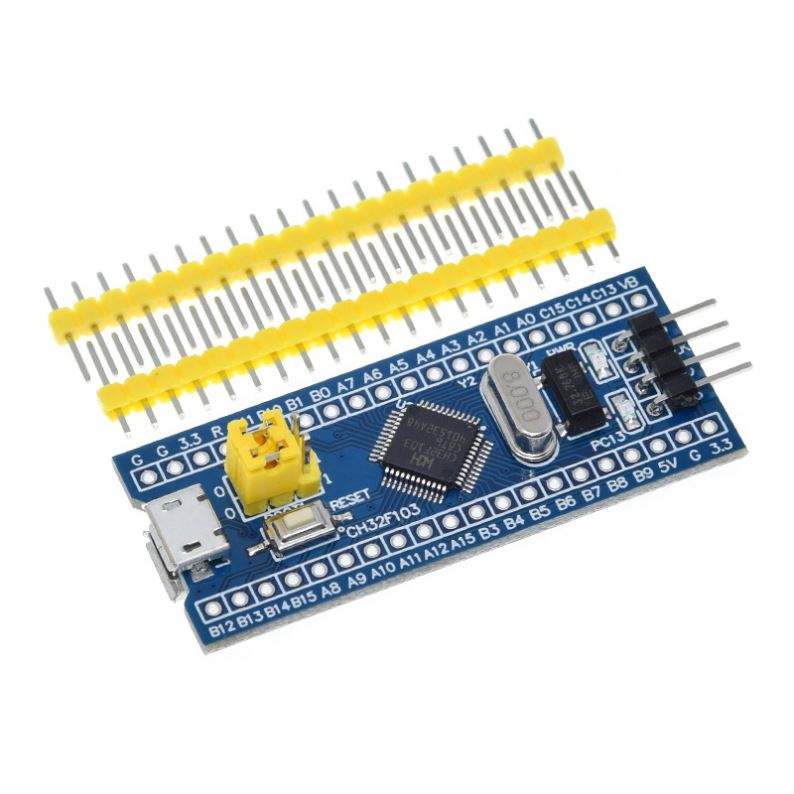

The STM32F103C8T6 Minimum System Board (Without Solder) Microcomputer, built on an ARM Core, is a high-quality, low-cost platform ideal for developers keen to learn and experiment with the STM32 microcontroller. Featuring the efficient ARM Cortex-M3 32-bit core, this development board promises superior performance and flexibility for a variety of applications.
Features: STM32F103C8T6 Minimum System Board
High performance with 72MHz work frequency.
Robust 64K flash memory and 20K SRAM.
Safe operating range from 2.0-3.6V.
Reliable power and I/O interface.
Comprehensive reset options including POR/PDR.
Equipped with a 4-16MHz crystal oscillator.
Onboard Micro USB interface simplifies power and communication.
Applications
The STM32F103C8T6 board is perfect for prototyping and developing projects requiring a reliable microcontroller. It’s highly suitable for learners, hobbyists, and professionals focusing on embedded systems, automation, and scalable STM32 projects.
Specifications
Model STM32F103C8T6
Core ARM Cortex-M3
Debug Mode SWD
Frequency 72MHz
Flash Memory 64K
SRAM 20K
Power Supply 2.0-3.6V
Dimensions 54mm x 22mm
Weight 9g
