Relay Modules
-
Relay Modules
12V 1 Channel Relay Module
₹35.00 Add to cart250VAC 10A, 28VDC 10A
Indicator LEDs
12V control voltage
Module size: 43mm x 17mm -
Relay Modules

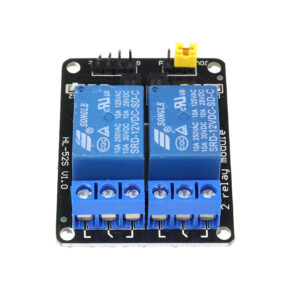

12V 2 Channel Relay Module
₹68.00 Add to cartOperating Voltage: 12V DC
Two separate LEDs for On/Off indication of the Relay
Triggering input voltage 3.3V – 5V 4)
Back EMF protection
Equipped with high-current relay 10A@250VAC / 10A@30VDC
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
Freewheeling diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
Mounting holes provided -
Relay Modules

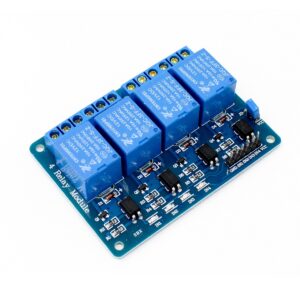

12V 4 Channel Relay Module
₹160.00 Add to cartThis Board can be used to Control Solenoids, Motors, Lamps, etc,
Input Logic: 12v level from MUC
Indication LEDs for relay output status.• 12V 4-Channel relay board controlled directly by micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) need 50-60mA driver current
Input IN1, IN2, IN3, IN4 signal line active low, 4-channel relay output module, relay output contact is maximum 250A 10A
Input Pin connected to Burg stick. High-current, AC250V 10A, DC30V 10A. -
Relay Modules

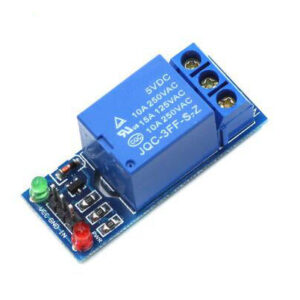

5V 1 Channel RELAY Module
₹35.00 Add to cartSupply voltage – 3.75V to 6V
Quiescent current: 2mA
Current when the relay is active: ~70mA
Relay maximum contact voltage – 250VAC or 30VDC
Relay maximum current – 10A
Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM) -
Relay Modules

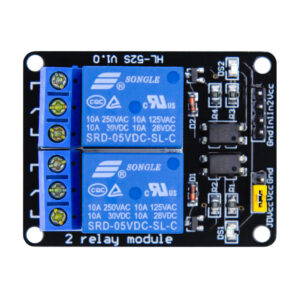

5V 2 Channel RELAY Module with optocoupler
₹68.00 Add to cartThe module using Songle relay control.
AC voltage 250V, AC current 10A, maximum DC voltage 30V DC current maximum 10A.
Power indicator (green), Two ways of relay status indicator light (red).
Using 8550 transistor-driven, strong driving ability.
Has the fixed bolt hole and easy installation. -
Relay Modules

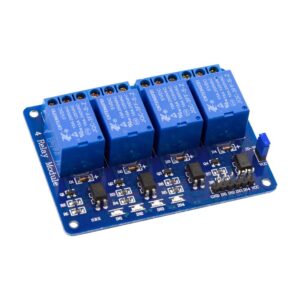

5V 4 Channel Relay Module (with Optocoupler)
₹160.00 Add to cartSupply voltage – 3.75V to 6V
Trigger current – 5mA
Current when the relay is active – ~70mA (single), ~300mA (all four)
Relay maximum contact voltage – 250VAC, 30VDC
Relay maximum current – 10A
Triode drive, increasing relay coil
High impedance controller pin
Pull-down circuit for avoidance of malfunction
Power supply indicator and Control indicator lamp
Power supply and relay instructions, lit, disconnect is off;
Input signal, signal, common Terminal and start conducting;
Useful for appliance control;
DC or AC signal, control, you can control the 220V AC load; -
Relay Modules

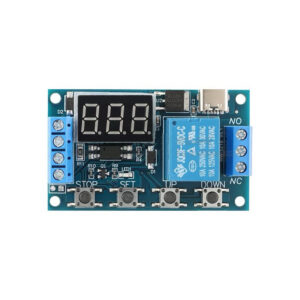

6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle
₹125.00 Add to cartSpecifications:
Operating voltage: 6-30V
Time interval:0.1 s (minimum) ~ 999 min (maximum) continuously adjustable.
Trigger Signal Source: High-Level Trigger (3.0 V-24 V)
Output Capacity: can control no more than DC 30V 5A AC or 220 V devices 5A
Optocoupler Isolation.
