Drone Parts
-
BLDC Motors
1000 KV BLDC Motor A2212
₹400.00 Add to cartSpecifications:
Model:A2212 10T 13T
Motor KV (RPM/V):1000
Compatible LiPO Batteries:2S ~ 3S
Shaft Diameter (mm):3.17
Current Handling Capacity (A):12
No-Load Current (mA):500
Max. Efficiency Current (A):4 ~ 10
Maximum Efficiency:80% -
Propellers

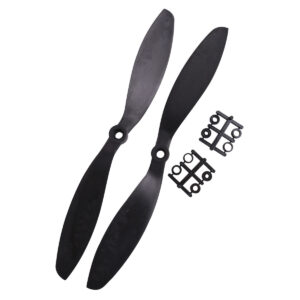

1045 Drone Propeller Blade Set – CW and CCW pair
₹60.00 Add to cartSpecifications of 10×4.5 inch Propeller Pair:
Each pair consists of one CW and one CCW propeller blade
Diameter: 10 inches / 25.4cm
Pitch: 4.5 inches / 11.43cm -
Batteries
11.1V 5400mAh 3S 60C Lithium-Polymer Rechargeable Battery
₹5,500.00 Add to cartSpecifications:
Nominal Voltage: 11.1V
Capacity: 5400mAh
Power: 59.94Wh
Discharge Rate: 60C
Battery Type: Lithium-Polymer (LiPo)
Charging Voltage: 12.6V (maximum)
Cell Configuration: 3S (3 cells in series)
Connector Type: XT60 + JST-XH 4-pin balance plug -
BLDC Motors
1400KV BLDC Motor A2212
₹400.00 Add to cartSpecifications:
Model: A2212 10T
Motor KV (RPM/V): 1400
Runs on 2-3 Cell Li-Po battery
ESC Requirement minimum 25A
1400 RPM/V no-load speed
Free Load Current 0.7A at10V
Maximum Efficiency: 86%
Weight 52 gm -
BLDC Motors
2200KV BLDC Motor A2212
₹400.00 Add to cartSpecifications:
Model: A2212/6T
Motor KV: 2200
Max. Efficiency Current: 4-10A
No Load Current: 0.5A @10V
Current Capacity: 12A/60S
LiPO Batteries: 2S-3S
Motor KV (RPM/V):2200
Compatible LiPO Batteries:2S ~ 3S
Shaft Diameter (mm):3.17
Maximum Efficiency:80%
Current Handling Capacity (A):12
No-Load Current (mA):500
Max. Efficiency Current (A):4 ~ 10 -
Flight Controllers
APM 2.8 Flight Controller with Built in Compass
₹6,800.00 Add to cartSpecifications :
Straight Needle
Arduino Compatible!
Onboard 4 MegaByte Dataflash chip for automatic data logging.
Optional off-board GPS, a uBlox LEA-6H module with Compass.
One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively. -
Batteries
Champion 11.1V 2200mAh 3S 60C LiPo Battery for RC Drones & Cars
₹1,600.00 Add to cartBattery
LiPo BatteryCapacity
2200mAhConnector
XT60No. of Battery Cell
3Nominal Output Voltage
11.1VWeight
180 gramsDischarge Rate
60CDimensions (LxWxH)
105 x 35 x 25 mmBattery
Balance Plug
JST-XH -
Frames
F450/Q450 Frame RC Drone FPV Racing Multi Rotor
₹680.00 Add to cartSpecifications :
Material: Glass Fiber, Polyamide-Nylon
Built from high quality glass fiber and ultra durable polyamide nylon.
Arms are reinforced and much more stronger to prevent and reduce breakage.
Integrated PCB connections for direct soldering your ESCs.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera or other accessories mounting.
Pre-threaded brass sleeves for all of the frame bolts.
Easy assembly. -
Transmitters and Receivers
FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver
₹5,700.00 Add to cartFeatures:
Bandwidth (kHz): 500.
RF Range (GHz): 2.40 ~ 2.48.
No. of channels: 6.
Remote controller weight (gm): 400.
Power: 6V (1.5V AA*4).
Antenna Length: 26mm * 2 (dual antenna).
Transmitting Power: ≤ 20dBm.
RF Receiver Sensitivity: -105dbm. -
ESC

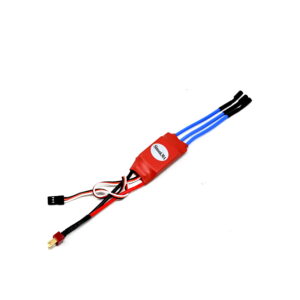

SimonK BLDC 30A ESC – Brushless DC Motor Electronic Speed Controller
₹360.00 Add to cartSpecifications:
Maximum current: 30A
Peak Current: 40A <10sec BEC Voltage/Current: 5V/2A Auto Cut-Off feature at 2.9V/cell Dimensions: 45 x 24 x 9 Weight: 23g
