Input and Interface Modules
-
Input and Interface Modules
BAFO Technologies USB to Serial DB9 Adapter with Cable
₹280.00 Add to cartSpecifications:
Brand: BAFO
Model: BF-812
Type: USB to DB9 (RS-232)
USB to DB9 adapter converter cable
USB full-speed (12Mbps)
True bidirectional
Compatible with Windows Vista / 7 /Server 2008/ Server2008R2 (32 & 64-Bit)
Mac OS X1.7Lion and10.6Snow -
Input and Interface Modules

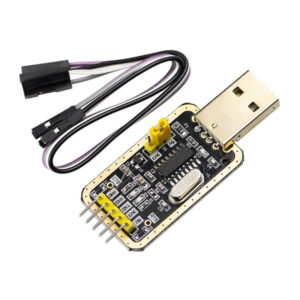

CH340G USB to RS232 TTL Auto Converter Adapter Module for Arduino
₹85.00 Add to cartSpecification:
Operating Voltage : 3.3 – 5VDC
Length : 55 mm
Height : 10 mm
Width : 23.6 mm -
Input and Interface Modules
CP2102(6-pin) USB 2.0 to TTL UART serial converter
₹130.00 Add to cartSpecifications:
Stable and reliable chipset CP2102.
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector.
All handshaking and modem interface signals.
Baud rates: 300 bps to 1 Mbps.
Byte receives buffer; 640 bytes transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Works with existing COM port PC Application -
Input and Interface Modules

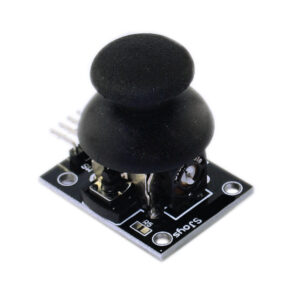

Joystick Module Dual Axis
₹45.00 Add to cartCompatible with Arduino or with most of the microcontrollers
Two independent Potentiometers – one for each axis ( X and Y)
Auto return to center position
Low weight
Cup-type Knob
Operating Voltage: 5V
Internal Potentiometer value: 10k
2.54mm pin interface leads
Dimensions: 1.57 in x 1.02 in x 1.26 in (4.0 cm x 2.6 cm x 3.2 cm)
Operating temperature: 0 to 70 °C -
Input and Interface Modules

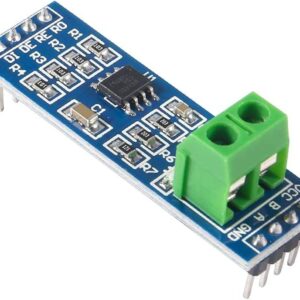

MAX485 TTL To RS485
₹30.00 Add to cartSpecifications :
Operating voltage: 5V
On-board MAX485 chip, A low power consumption for the RS-485 communication, slew-rate limited transceiver.
A low power consumption for the RS-485 communication
Onboard then 5.08 (mm) pitch 2P terminal to facilitate RS-485 communication wiring.
All pins of the chip have been lead to can be controlled through the microcontroller.
Convenient RS-485 communication wiring
Multiple Units can be connected to the same RS-485 bus wiring. -
Input and Interface Modules
Micro USB 4-Pin Breakout Board
₹20.00 Add to cartSpecifications
Connector Type: 5-pin female USB B-type
Output Voltage: 5V DC
VCC: 5V power supply
D-: USB data negative signal
D+: USB data positive signal
ID: USB identifier signal for OTG devices
GND: Power ground
Compatibility: Microcontroller boards, USB-powered circuits, and prototypes -
Input and Interface Modules
PL2303 – PL2303HX USB to TTL Serial UART Converter Module
₹69.00 Add to cartSpecifications :
Adopt imported controller PL2303HX, which can stabilize the flash with high speed
500mA self-recovery fuse for protection.
Two data transmission indicator can monitor data transfer status in real time.
Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power.
The entire board is coated by the high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside.
The electrostatic package ensures the board will not be damaged before use.
Support WIN7 system. -
Input and Interface Modules
Type-C Connector 4-Pin Breakout PCB Board
₹20.00 Add to cartSpecifications
Connector Type: USB 3.1 Type-C Female
Pin Count: 4 (VBUS, GND, D+, D−)
PCB Hole Pitch: 2.54mm
Application: Charging modules, power supplies, USB data projects -
Input and Interface Modules
USB to RS485 Converter Adapter Support WIN7 XP Vista Linux Mac OS
₹78.00 Add to cartSpecifications:
USB to RS485 Converter Adapter
USB connector: to your PC
RS485 connector: to your RS485 device
Fully compliant USB 2.0 standard, backward compatible with USB1.1
Support System: Windows XP, Vista, Windows 7, Linux, MacOS, and WinCE5.0 drive
Supports Plug, Play and hot-swap ( USB side)
Better than using CH341D chip or similar chip to support the laptop USB port
Communication distance up to 1.2KM, with the anti-jamming performance of the industrial site
No need external power, powered by USB port -
Input and Interface Modules

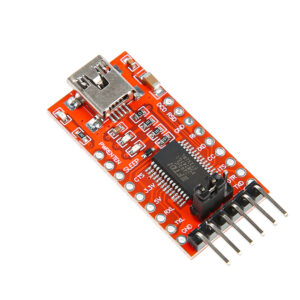

USB To UART TTL 5V 3.3V FT232RL FTDI Download Cable To Serial Adapter Module
₹95.00 Add to cartSpecification :
Material: PCB + Electronic Component
Support 3.3V, 5V
Main Color: Red
Chipset: FT232RL
USB power has over current protection, using 500MA self-restore fuse
RXD/TXD transceiver communication indicator
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Module Size: About 36mm(length)*17.5mm(width)
Interface : Mini USB -
Input and Interface Modules
USB Type-B Female Head to DIP 4-Pin Breakout PCB Module
₹20.00 Add to cartSpecifications
Connector Type: USB Type-B Female
Pin Count: 4 (VCC, D+, D−, GND)
PCB Hole Pitch: 2.54mm
Application: Arduino, CNC machines, USB interface circuits
