SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)

SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)- ADIY

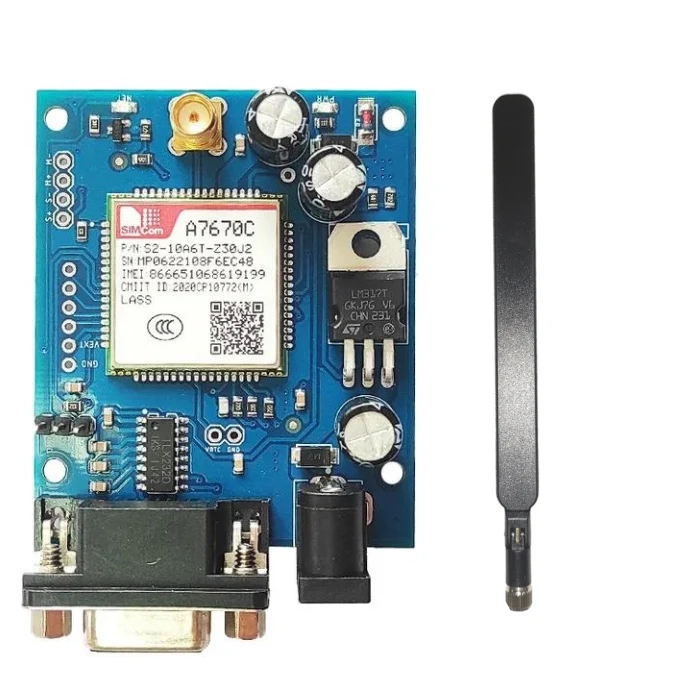

The ADIY 4G LTE modem is equipped with a SIM card socket, an SMA antenna connector, a DC power jack, and an RS232 interface. It supports various wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE.

This board is centered around the SIMCOM A7670C LTE module and is furnished with an RS232 interface. The RS232 interface allows for effortless connectivity to a computer or laptop using a USB to Serial connector, or to a microcontroller using an RS232 to TTL converter. Additionally, a 3-pin header provides access to a 1.8V level UART interface, enabling direct interfacing with microcontrollers. Communication with the A7670C module is achieved through the utilization of AT commands.

Pinout:

Pinout Of SIM7670C 4G LM137
Features:
Serial interface
Based on the SIMCOM A7670C LTE modem
Supports LTE-FDD, LTE-TDD, and GSM frequency bands
Controlled via AT commands
SIM card holder included
SMA antenna connector
DC power jack
RS232 interface
Suitable for LTE and GSM networks
Maximum downlink rate of 10Mbps
Abundant software functions such as FOTA, LBS, and SSL
RS232 DB9 Connector interface
SMA connector for external antenna
1.8V UART header
