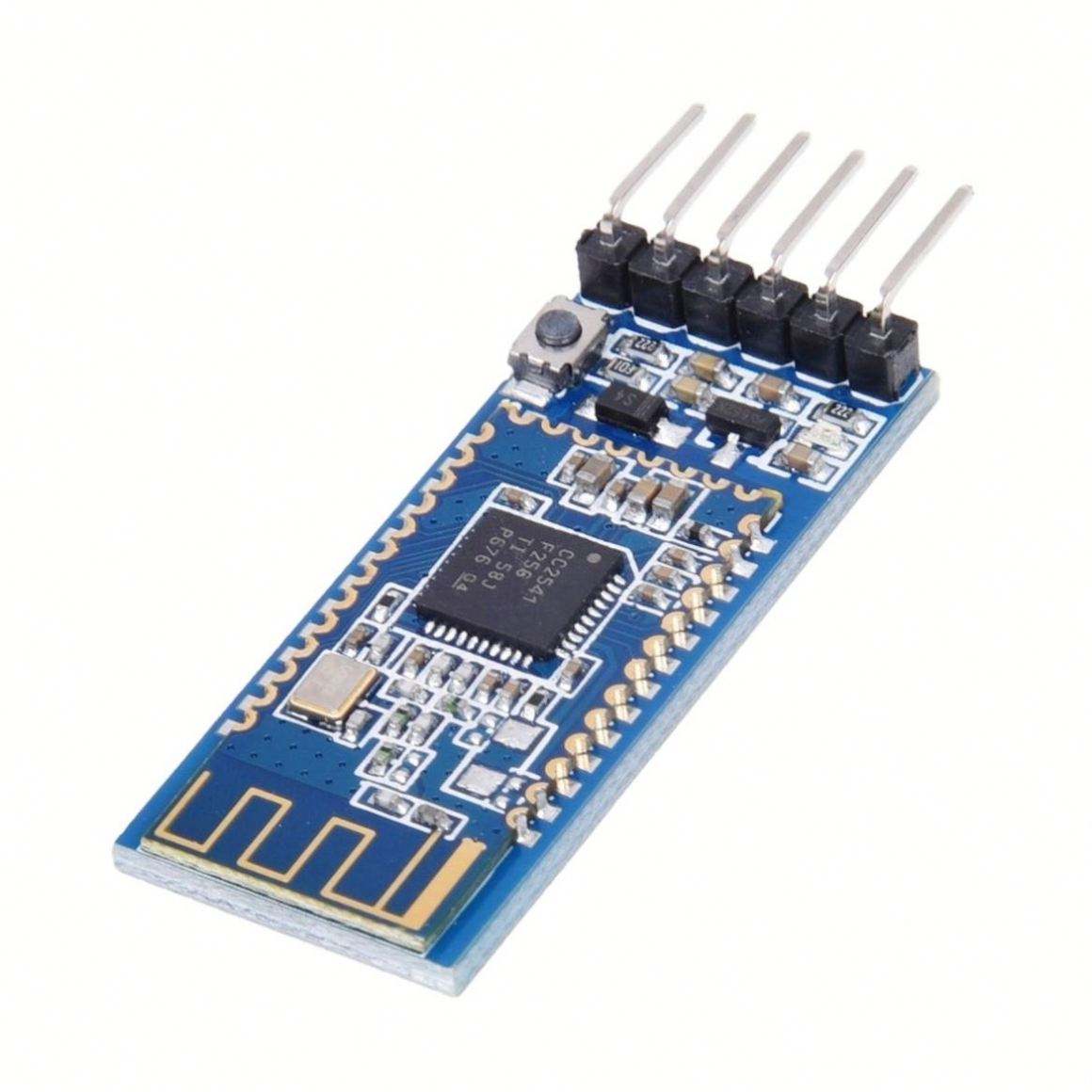

HM-10 Bluetooth Module – AT-09 Bluetooth 4.0 UART Transceiver Module CC2541

Name: HM-10 Bluetooth Module - AT-09 Bluetooth 4.0 UART Transceiver Module CC2541
SKU: WRLS-3002
Price: 311.00 INR
Availability: InStock

₹311.00

Features:

Bluetooth Protocol Specification: Bluetooth Specification V4.0 BLE
Supported USB Protocol: USB V2.0
Operating Frequency: 2.4GHz ISM band
Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
Transmitting Power: ≤4dBm
Sensitivity: ≤-84dBm at 0.1% BER
It’s easy to use and completely encapsulated.
You can set it as slave or master.
You can use AT command set the baud rate
Coverage up to 60 meters.
Built-in PCB antenna.
UART design.
Support bridge direct-driven mode simultaneously (no need for extra CPU).
20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.
Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).
Support APP; IO expansion.
2 channel ADC input (14 bit).
4 channel PWM (120Hz) output.
The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).
Power indicator/alert.
Support anti-hijack password setup, modification, and restoration.
Ultra-low power consumption standby mode

Availability: Only 2 left in stock

SKU: WRLS-3002 Category: RFID & Wireless Modules

Specification:

Input Supply voltage (V) : 5
USB Protocol : USB V2.0
Operating Frequency : 2.4GHz ISM band
Modulation Mode : GFSK
Transmitting Power (dBm) : ≤4
Coverage Range (m) : 60
Sensitivity : ≤-84dBm at 0.1% BER
Length (mm) : 47
Width (mm) : 17
Height (mm) : 8
Weight (gm) : 4 HM-10 Bluetooth module is a Bluetooth Low Energy (Bluetooth 4.0) development module based on the CC02541 Chip from Texas Instruments. The module communicates through UART protocol using AT commands. It can be used to communicate with all BLE devices like Fitness bands, Bluetooth trackers etc or even used as an iBeacon.

The module has a built-in CPU that supports IO expansion, 14-bit two channel ADC, 120Hz four channel PWM etc. It has a range of 60 meters and consumes very low power in standby mode. The module can act both as a Master and as a Slave.
