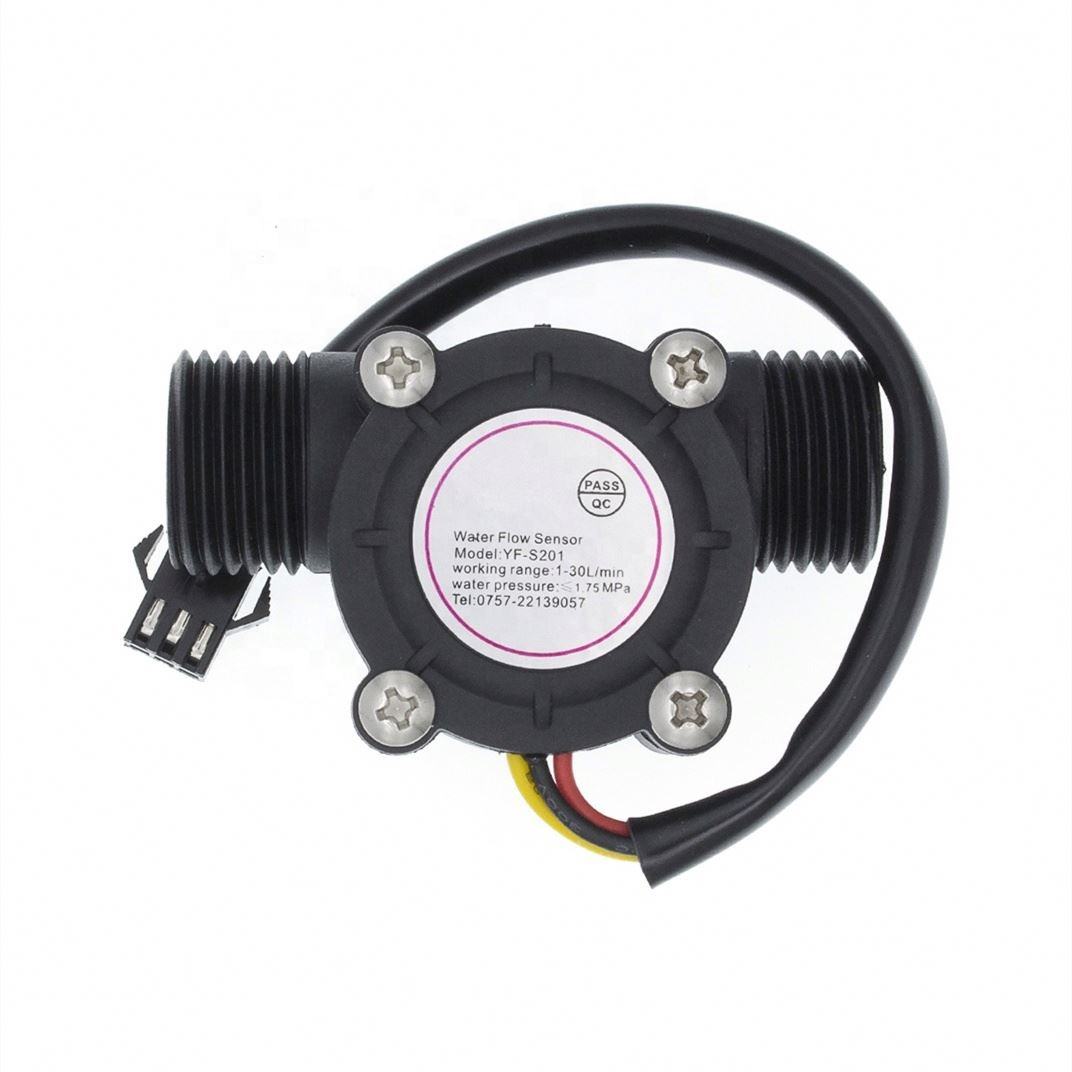

Water Flow Sensor YF-S201

Name: Water Flow Sensor YF-S201
SKU: SEN-2057
Price: 160.00 INR
Availability: InStock

₹160.00

Specifications:

Model: YF-S201
Sensor Type: Hall effect
Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
Max current draw: 15mA @ 5V
Output valve Size: 20mm
Output Type: 5V TTL
Working Flow Rate: 1 to 30 Liters/Minute
Working Temperature range: -25 to +80℃
Working Humidity Range: 35%-80% RH
Accuracy: ±10%
Maximum water pressure: 1.75 MPa
Output duty cycle: 50% +-10%
Output rise time: 0.04us
Output fall time: 0.18us
Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
Pulses per Liter: 450
Durability: minimum 300,000 cycles

Availability: 3 in stock

SKU: SEN-2057 Category: Motion and Position Sensors

Description
Reviews (0)

This is YF-S201 Water Flow Measurement Sensor with 1-30Leter/min Flow Rate. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

Features :
1/2″ nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread
The simple and compact module
Easy to Install
High Sealing Performance
High-Quality Hall Effect Sensor
