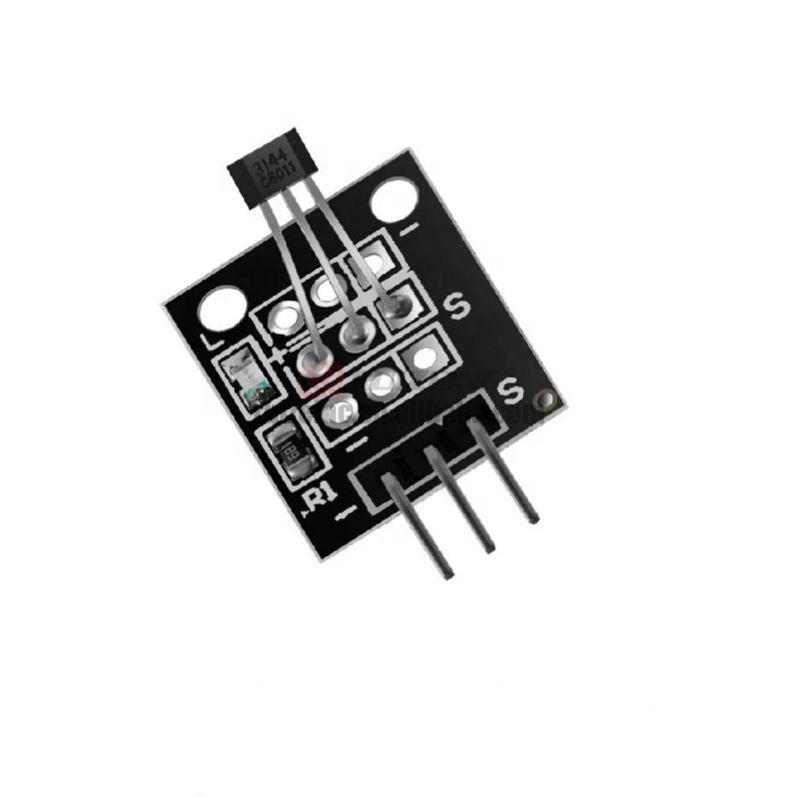

SS49E Linear Hall Effect Sensor Module

The Analog Hall Magnetic Sensors are based on the 3144 Series Hall Effect switch IC, utilizing advanced magnetic semiconductor integration technology. These sensors combine various components, including a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger, temperature compensation circuit, and an open-circuit output stage to form the magnetic sensing circuit. The sensor detects magnetic flux density at the input and outputs a digital voltage signal.

This module features both analog magnetic sensing and a digital interface, along with a built-in 13-LED setup, which allows for the creation of a simple circuit to generate magnetic pulses or flashes.
