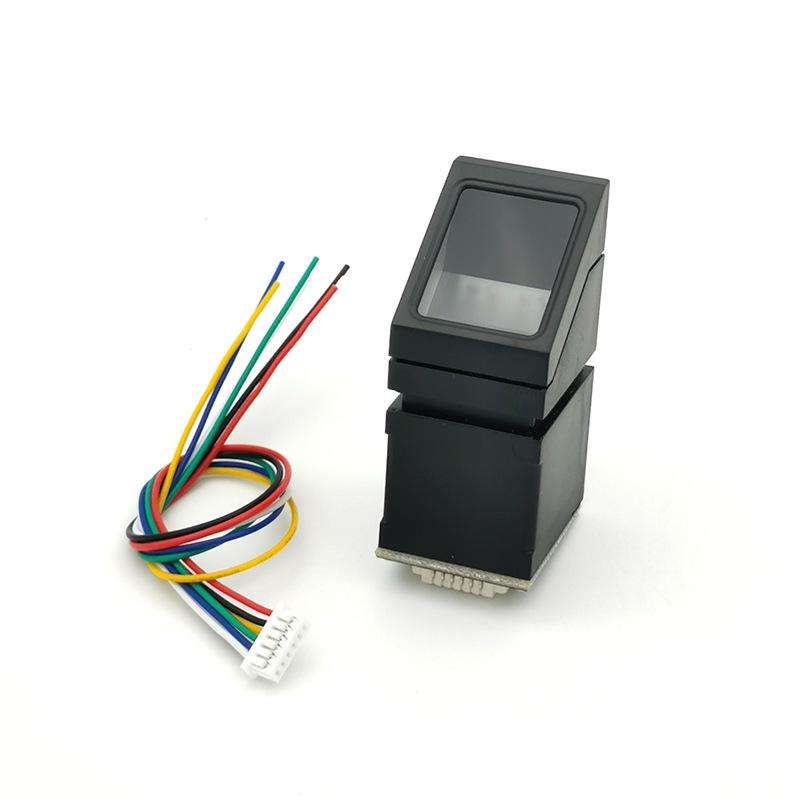

This is the R307 Fingerprint Sensor Module with a TTL Uart Interface for direct connection to microcontroller uart or to PC through MAX 232/USB-serial adapter. The user can save the fingerprint data in the Module and can configure it in either 1:1 or 1 :N mode for identification of the person. The Fp module can directly interface with three.3 or five volt microcontroller. An integrated image collecting and algorithm chip, All-in-One Fingerprint Reader can conduct secondary development, be embedded into a variety end products. Users can perform secondary development, can be used in a variety of end products including access control, attendance, safety deposit box, car door lock. The R307 Fingerprint sensor module has low power consumption, low-cost, small size, excellent performance, professional optical technology, precise module manufacturing technics. Good image processing capabilities can successfully collect an image up to resolution500dpi Finger detection function
R307 Fingerprint Sensor Module
₹1,000.00
Operating voltage (v): 4.2 ~ 6 VDC
Current consumption: ≤75mA
Verification Speed: 0.2 sec
Scanning Speed: 0.3 sec
Character file size: 256 bytes
Template size: 512 bytes
False Acceptance Rate (FAR): ≤0.0001%
False Rejection Rate (FRR): ≤0.1%
Resolution: 500 DPI
Operating Temperature: -20 ~ +50 °C
Length (mm): 46
Width (mm): 21
Height (mm): 23.5
Weight (gm): 20
