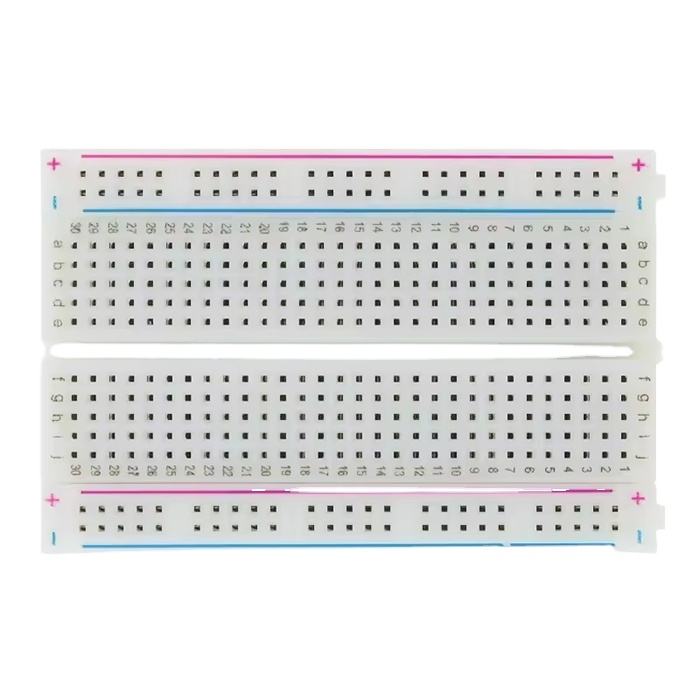

400 Tie Points – Solderless Breadboard a high-quality breadboard with power lanes and printed top face for easy prototyping .A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components.
400 Point Breadboard
₹38.00
Specifications:
Body Material: ABS Plastic (White or Transparent) with color printed legend
ABS Heat Distortion Temp is 84°C / 183°F
Hole Style: Square Wire Holes
Hole Pitch: 0.1″ / 2.54mm
Spring Clip Contact: Phosphor Bronze with Plated Nickel Finish
Contact Life: 50,000 insertions
Rating: 36 Volts, 2 Amps
Insertion Wire Size: 21 to 26 AWG wire, or 0.025″ square post headers 0.016 – 0.028″ / 0.4 – 0.7mm diameter

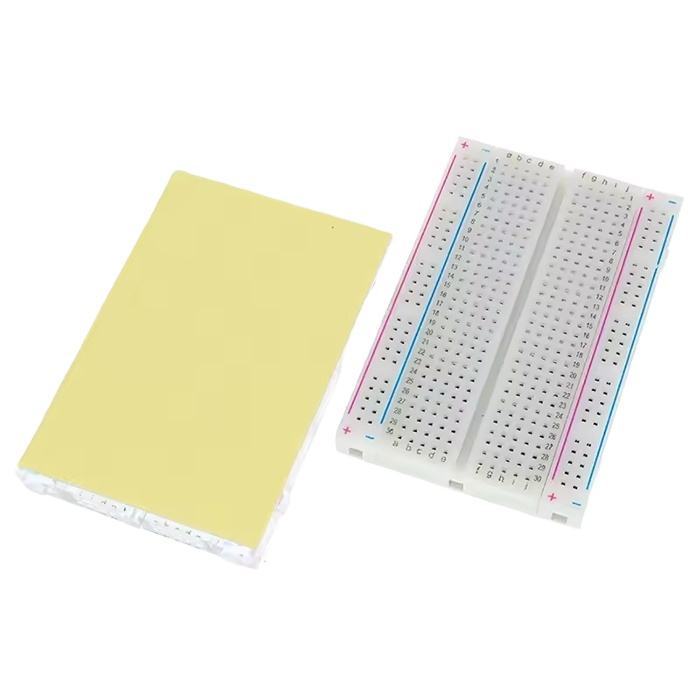

Backing: Peel-able adhesive tape for attaching to a surface Metal back plate (0.031 “/ 0.8mm thickness)
Internal Connections: 60 vertical columns in the circuit area and 4 horizontal “rails” as distribution strips for power and ground
Availability: In stock
| Weight | 0.035 kg |
|---|
